High efficiency: Compared to normal stencial, you only need to make one stencial and stretch screen mesh once.
Improving the quality of products: Using stencial isolator can finished two color printing once, which can avoid quality problem caused by misregister.
Easy to install and operate: you only need to fix stencil isolator on two sides of frame according to separated printing position.
Then cut a appropriate length paperboard, plastic board or wood board as isolating board, fix it by bolts and finally make isolating board and screen mesh adhesive by tape.
It is not restricted by size of frame and frame materials.It can be used for frame of within 2.4″(6cm) width, isolating board of within0.8″( 2cm) thickness.
It is suitable for various material of frame (wood, aluminum alloy, iron, etc).
Our stencial isolator is made of 0.24″(6mm) steel plate cutting by laser and bending,which make it never deformation.
And it will never rust as the surface is coated by advanced electrostatic coating treatment.

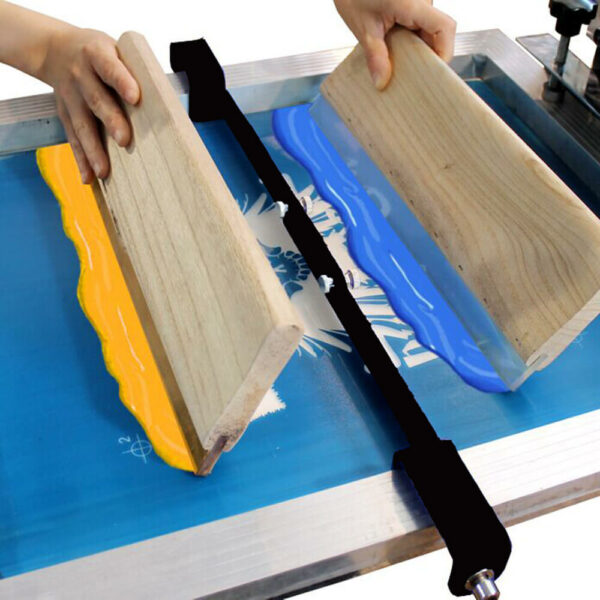

Stencil isolator is auxiliary device, designed by our company for the case that images separate partly and also need to print two colors or more in screen printing. Such as the back of sportswear, numbers are red while letters are blue, Usually which needs two stenials and print twice. But now you can finish it easily using our stencil isolator. First, expose numbers and letters on one screen stencil; Divide the stencil into two parts by stencil isolator, which can isolating two different colors when printing; Finally a perfect sportswear is printed.
Features:
High efficiency: Compared to normal stencial, you only need to make one stencial and stretch screen mesh once.
Improving the quality of products: Using stencial isolator can finished two color printing once, which can avoid quality problem caused by misregister.

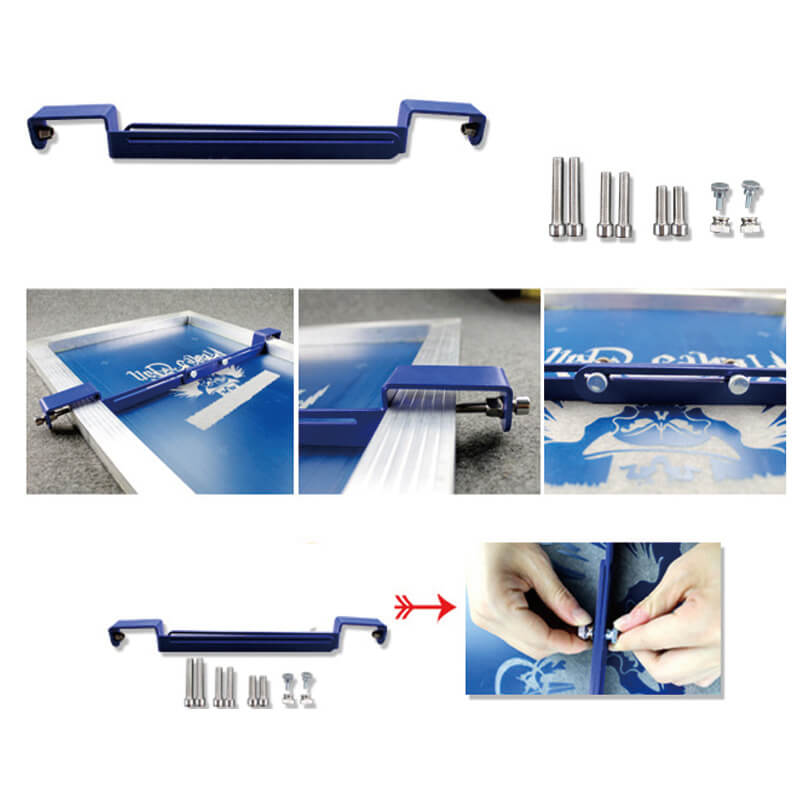

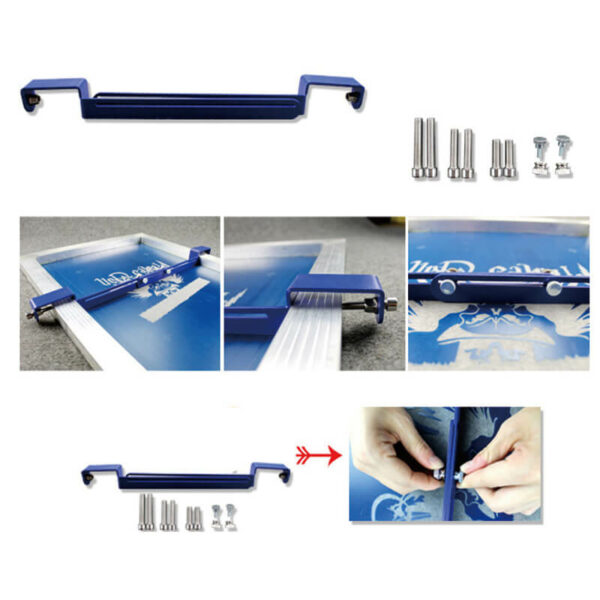

Easy to install and operate: you only need to fix stencil isolator on two sides of frame according to separated printing position.
Then cut a appropriate length paperboard, plastic board or wood board as isolating board, fix it by bolts and finally make isolating board and screen mesh adhesive by tape.
It is not restricted by size of frame and frame materials.It can be used for frame of within 2.4″(6cm) width, isolating board of within0.8″( 2cm) thickness.
It is suitable for various material of frame (wood, aluminum alloy, iron, etc).
Our stencial isolator is made of 0.24″(6mm) steel plate cutting by laser and bending,which make it never deformation.
And it will never rust as the surface is coated by advanced electrostatic coating treatment.
Parameter:

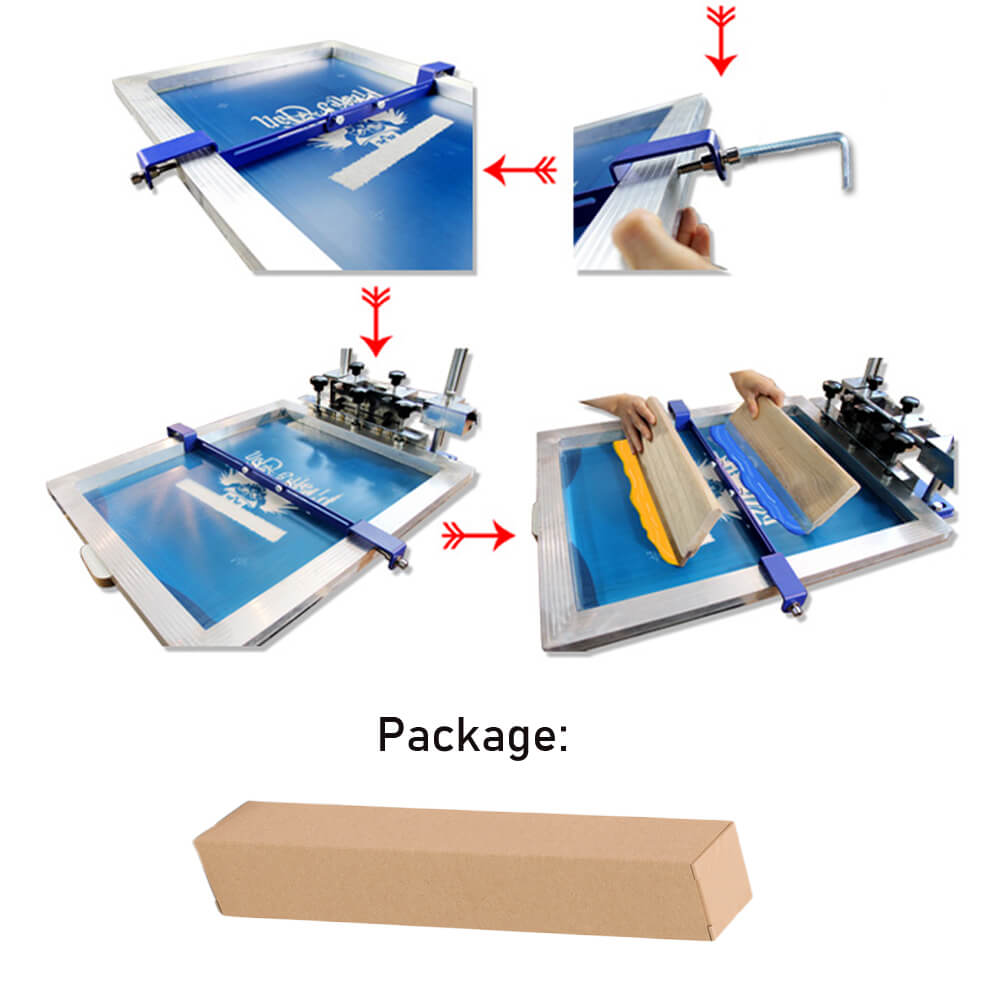

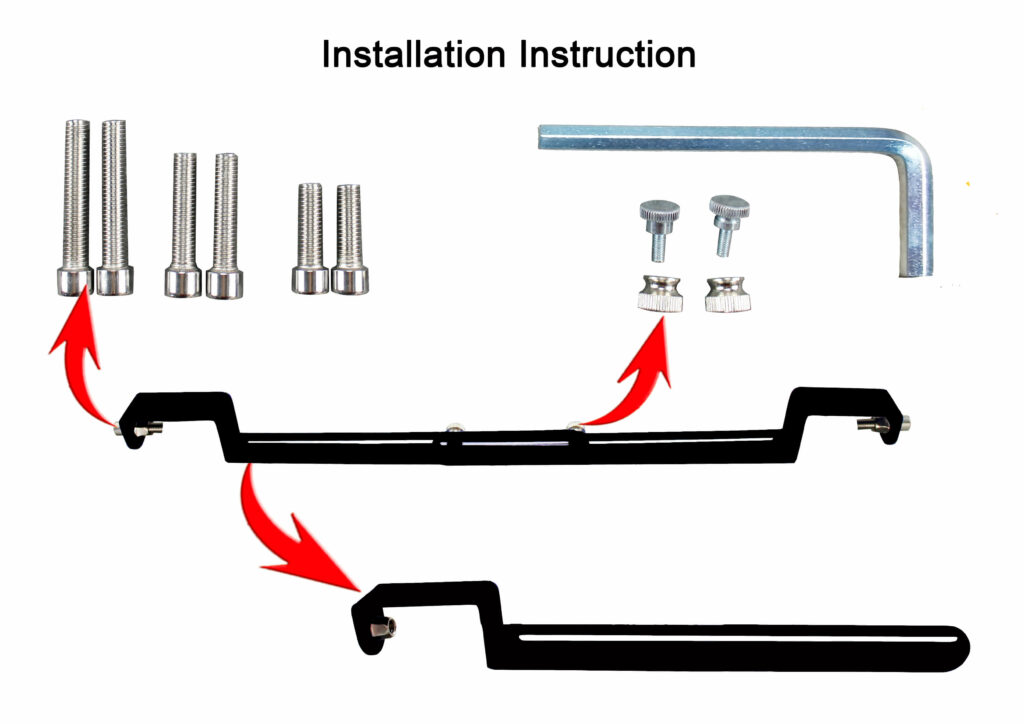

Package:2 pcs for 1 pair with all screws and tools
Packing size:55x10x10cm
Weight:2.5 KG
Instruction:
Two-color in one printing stencil isolator is our company according to the screen printing process encountered in the pattern part of the color separation and printing 2 color case, change traditional color of each a screen version, need to print more than twice the and specially designed a kind of screen printing auxiliary device.
Such as: the back of the sportswear, number is a red; English name is blue, the past is the basic practice need to do 2 screen version and need to print 2 times then complete the printing. Our company designed this separate, it would make numbers and English name on a screen version half and half, in the printing process, split the screen using the separate, separate from each side color printing materials, printing can be respectively printed on the two colors.
