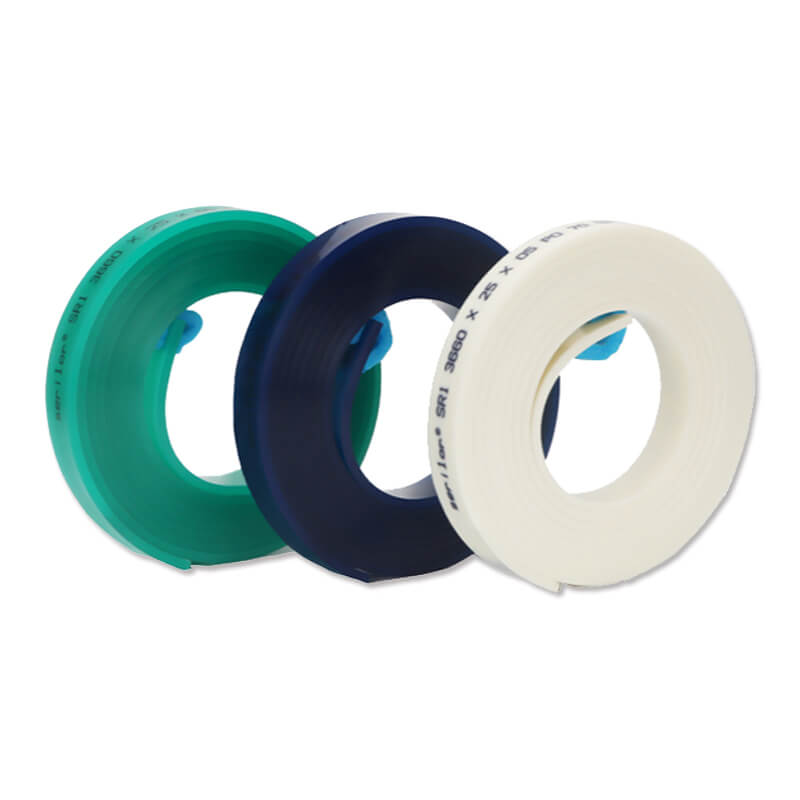

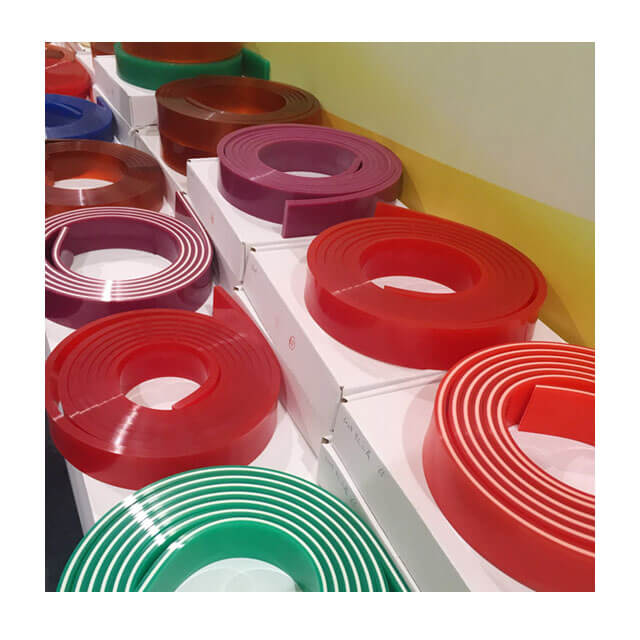

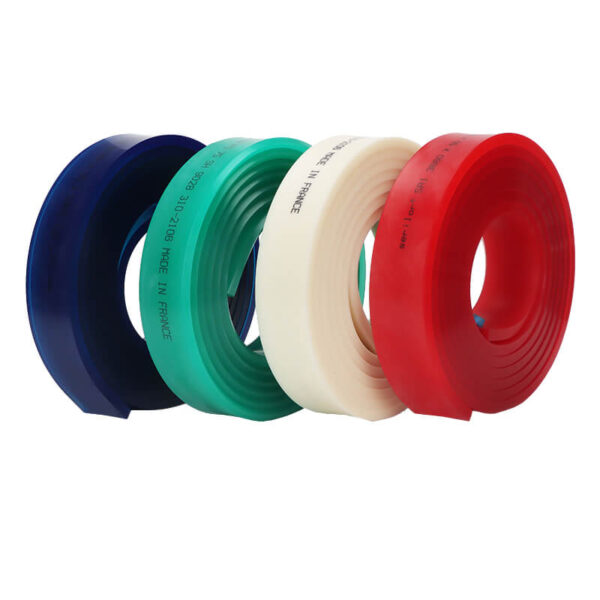

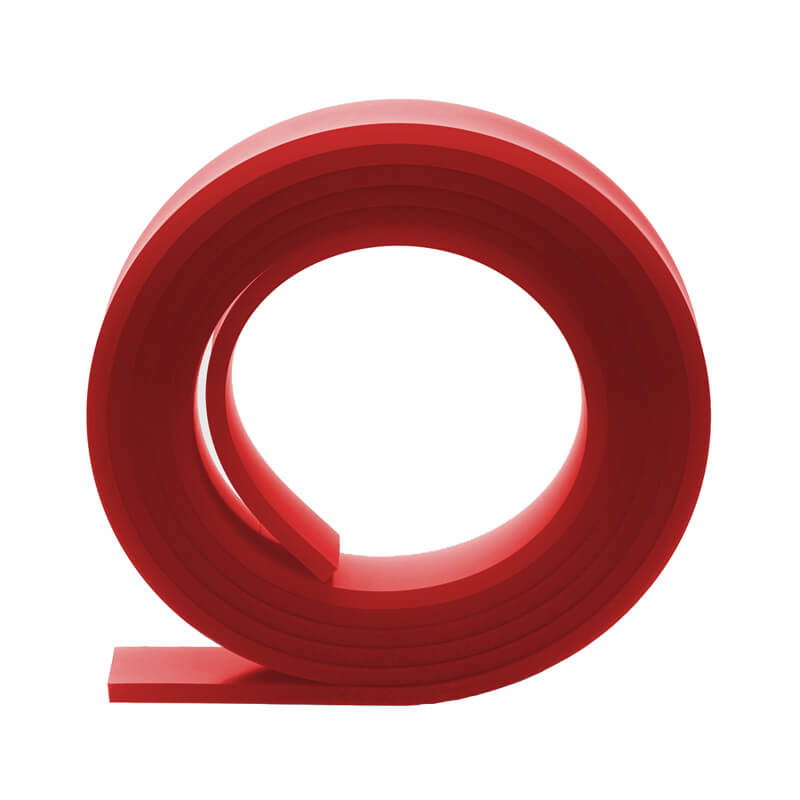

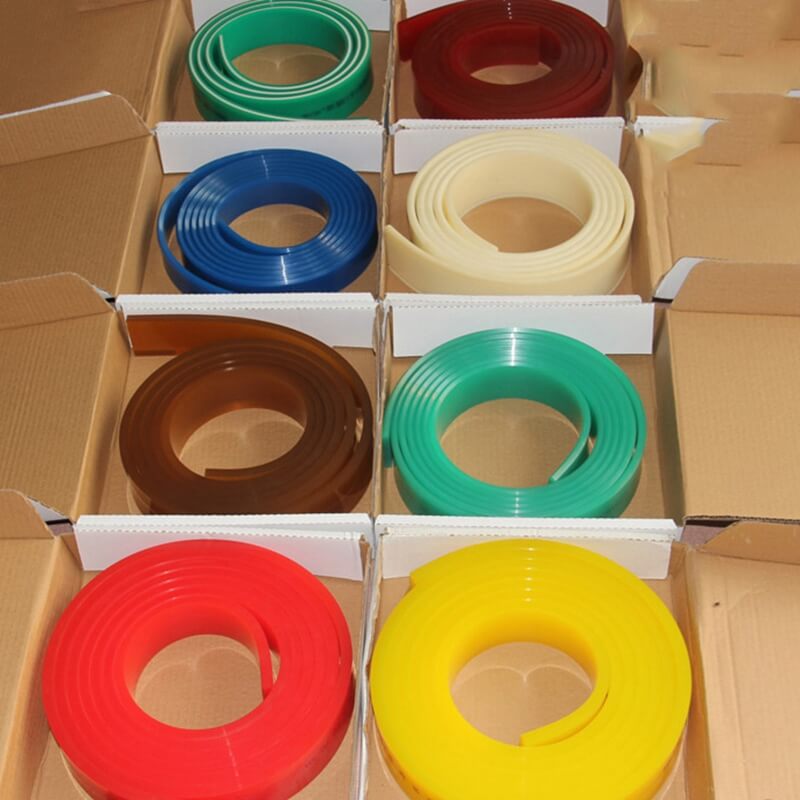

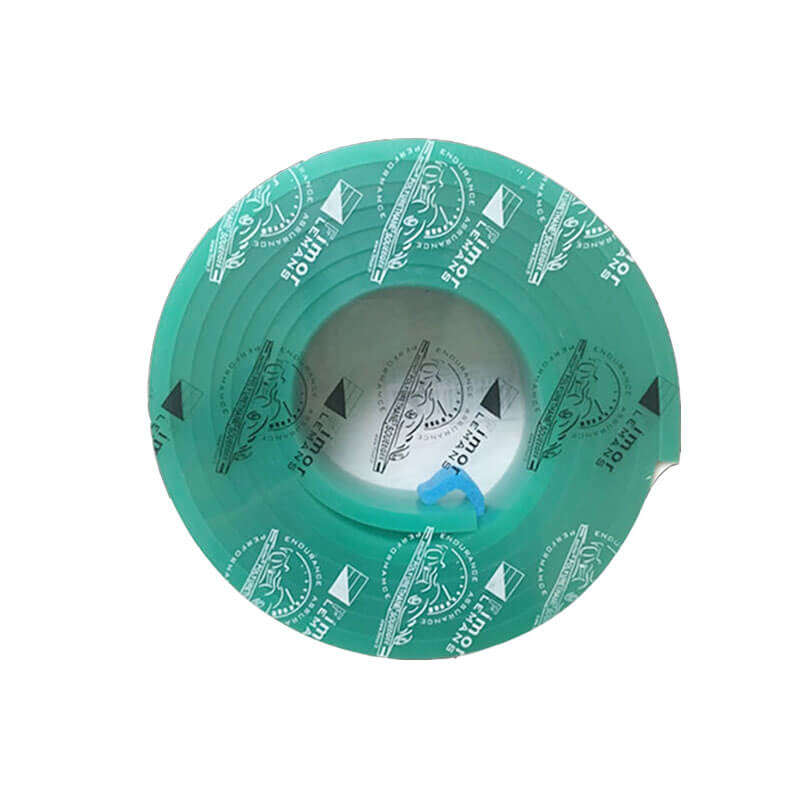

The squeegee rubber is essential part for wooden handle squeegee or aluminium handle squeegee, most used for graphic printing, good resistance to solvent, be suitable for all kinds of inks.Our screen printing squeegee rubber are made out of top-grade polyurethane elastomers and are of the highest quality.the squeegee rubber has the world’s top level.its characteristic is have super solvent resistance and abrasion resistance,it is the most ideal choice for high-end silk screen printing. 1.Test solvent resistance – Multi-color printing; 2.Highest abrasion resistance – Electronic circuit board printing; 3.Excellent weather resistance (temperature, humidity) – Container printing (bottles and cans); 4.Textile printing
Features:
Excellent resistance and minimum swell to a wide range of pastes, oil ink and solvents.
The best stability under different printing conditions. Easy to grind
The best solvent resistance and the highest wear resistance
Never soften nor damage when dipped in solvent cleaners.
Durable with smooth edges and uniformity of the edges.
Full rubber are well defined without defects.
Parameter:
Material:Polyurethane
Color:Green/Red/Yellow/Coffee/Blue/White
One Roll Size:50mm(W)x9mm(T)x4000mm(L)
Shore hardness:55A-95A
Type:Flat/Sharp/Round/triple
One Roll Packing size: 25xx25cmx8cm
Weight: 2KG

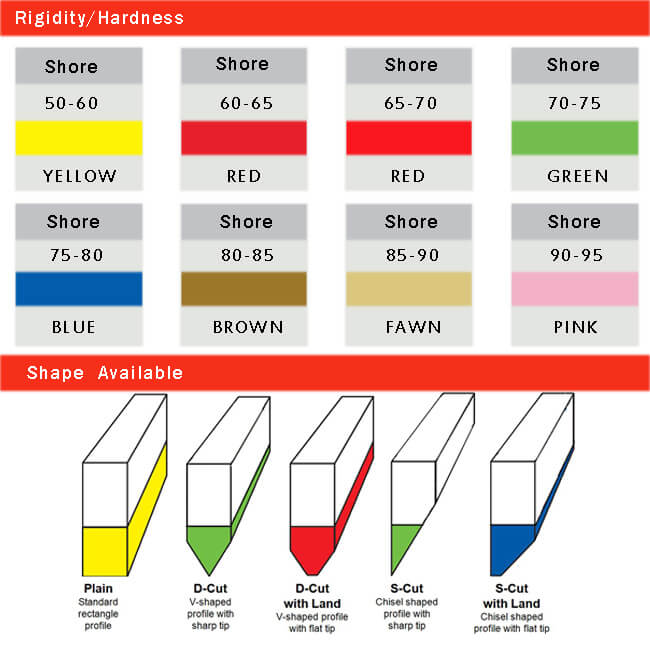

Tips for choosing the right Screen Printing Squeegee:
Durometer measure’s the hardness of the squeegee rubber, which defines how much pressure will be used to pass ink through the mesh screen. The greater the durometer, the less the rubber blade bends, therefore the lower the durometer of the rubber the more the squeegee blade will flex.
Soft, 45-65 ShoreA, red or coffee
Suitable for the low mesh screen cloth,low viscosity ink,irregular surface of the printing
Medium, 70-75 ShoreA, green or coffee
Suitable for various of mesh screen cloth,various of ink and various of the prints
Hard, 80-85 ShoreA , blue or coffee
Super hard, 90-95 ShoreA, white
Suitable for high pressure,high viscosity ink,the fine print of the printing
Other hardness or colors are available on request.
