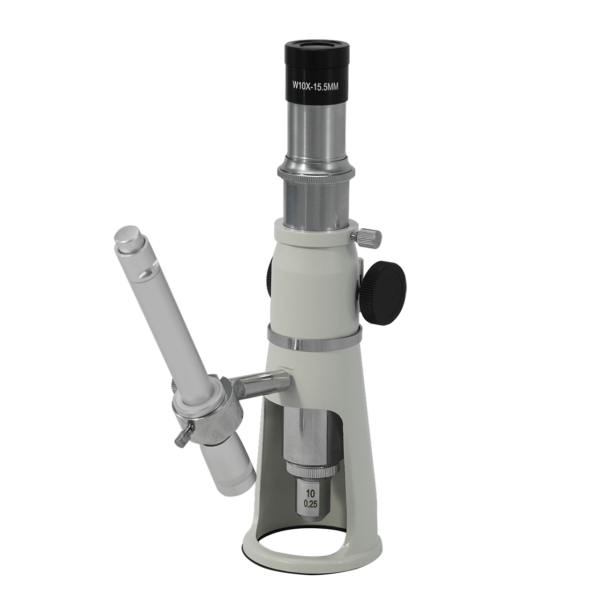

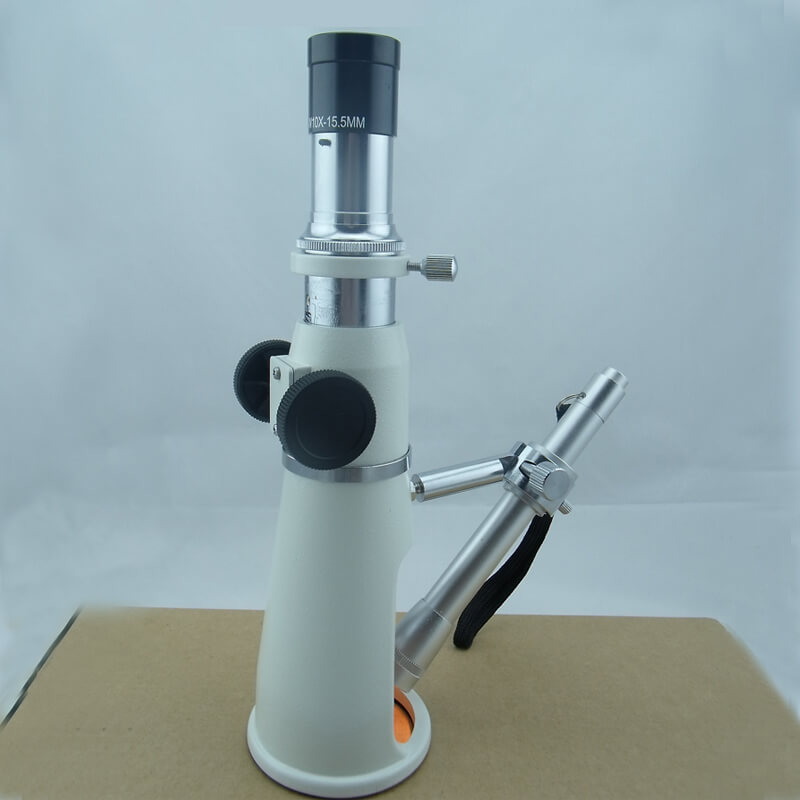

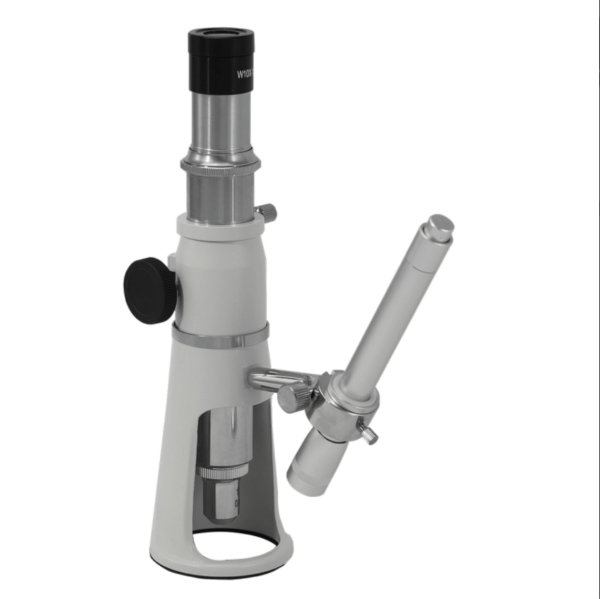

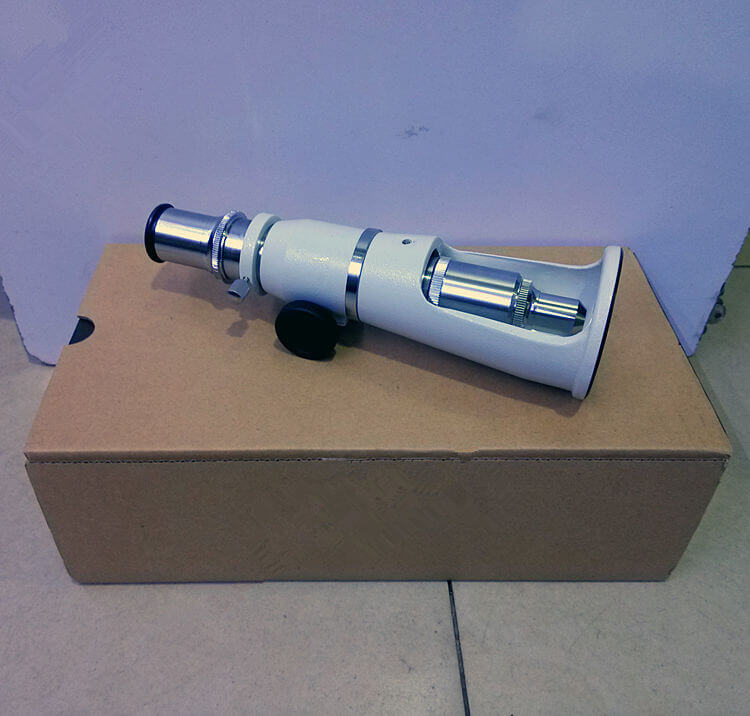

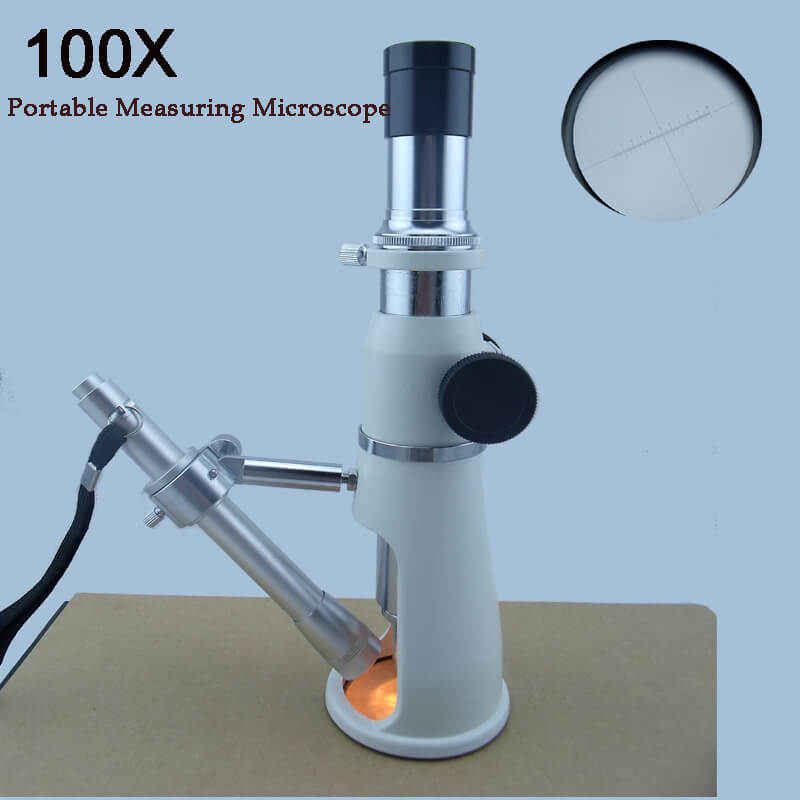

Portable Handheld Stand Measuring Microscope 100X Magnification
Application:

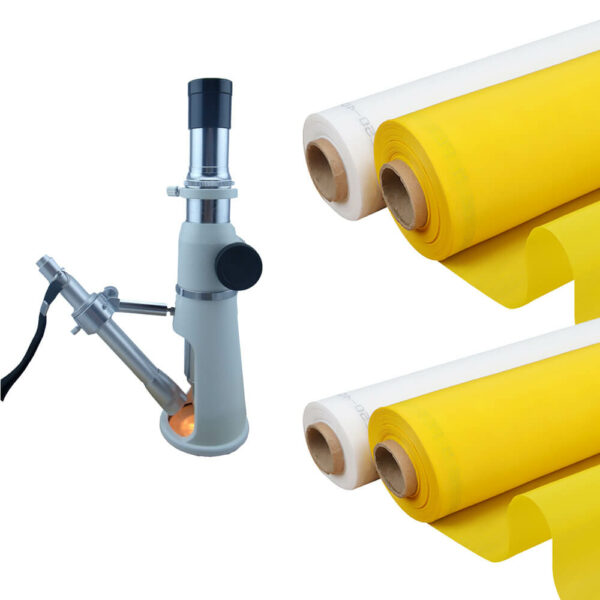

It is widely used in spot inspecting and measuring in the factory and observation and research in Laboratory.It is specially suitabel for production locale inspecting for mechanical,screen printing,paper making manufacture and print,textile industry,etc.This product is small and exquisite,novel designed and exquisite,novel designed and operation easy,also suitable for student’s experiment.It is also suitable to be used by student.
Features:
Portable microscope – Excellent Optical System
A brand new portable microscope with a wide field of view for general applications.
Provides a bright, clear and undistorted image with high quality optics and a rack focusing system.

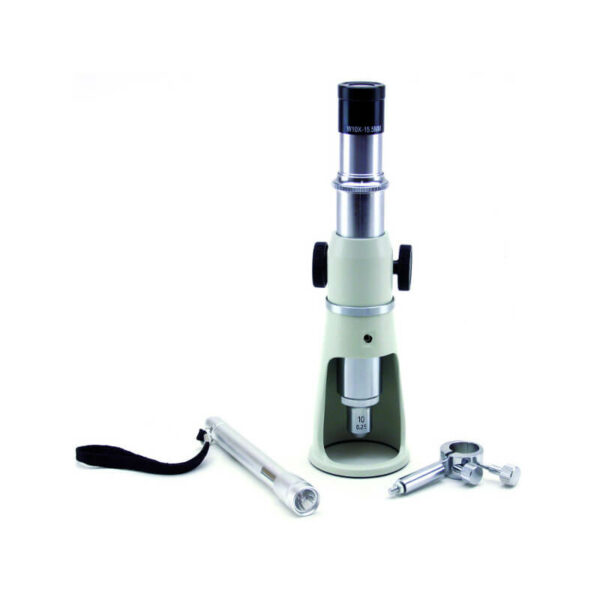

Can be used in low light areas with a penlight attachment and an alloy base.
Widely applied to screen printing, biology, archaeology, botany, forensics, geology,entomology horticulture, numismatics and philately, quality control, textiles and electronic industries.
An excellent introductory microscope for a beginner.

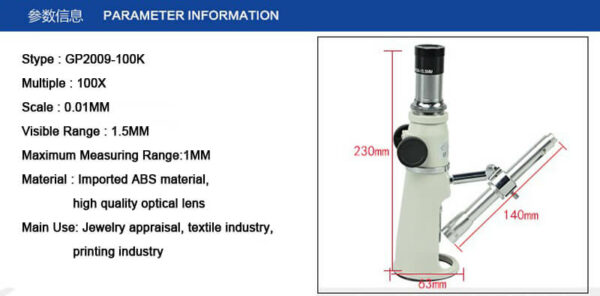

Parameter:
Total Magnification: 100X
Mechanical Tube Length: 160mm

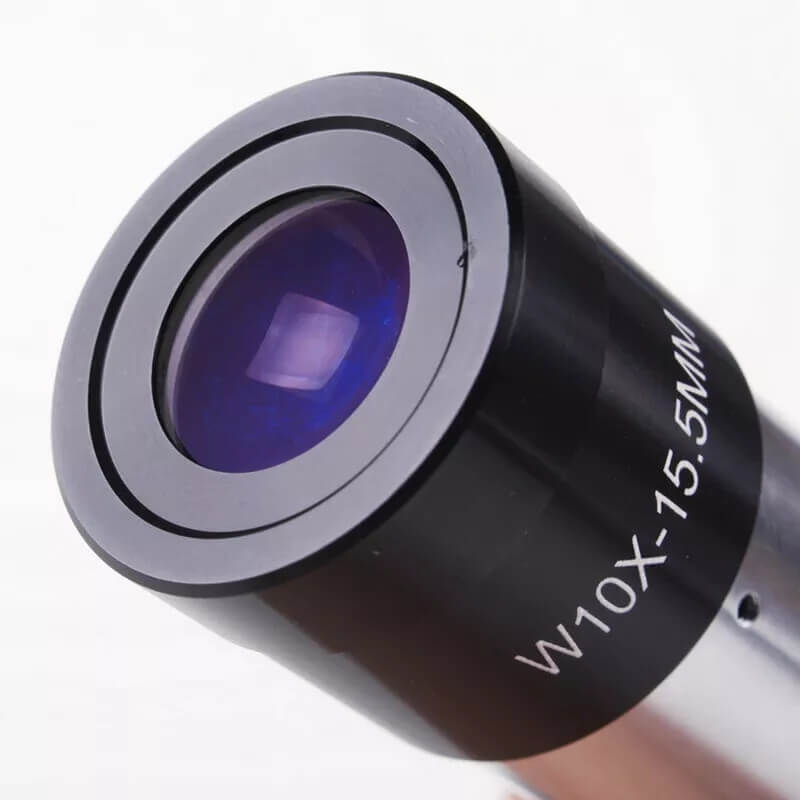

Eyepiece: 10X

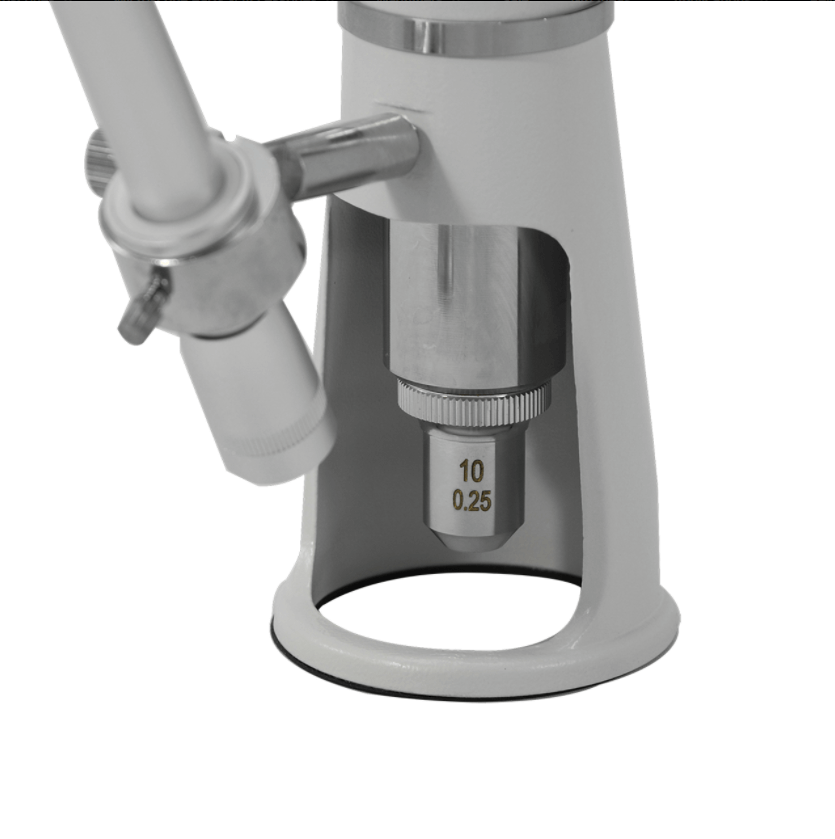

Objective: 10X
Numerical Aperture: 0.25
Diameter of Viewing field in Eyepiece:φ18mm

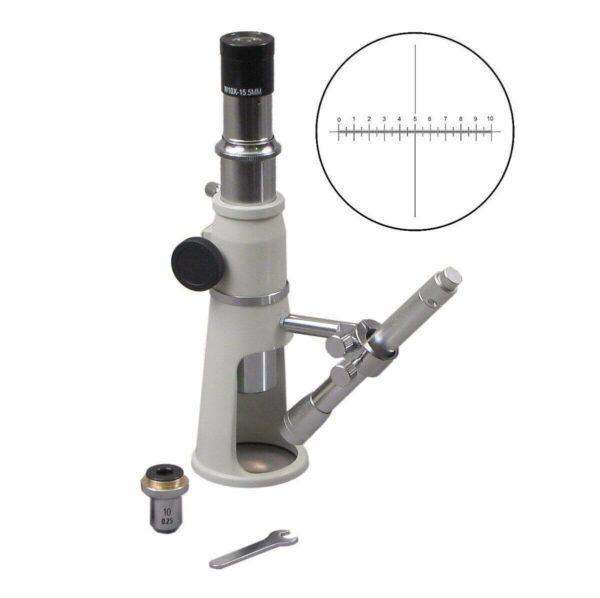

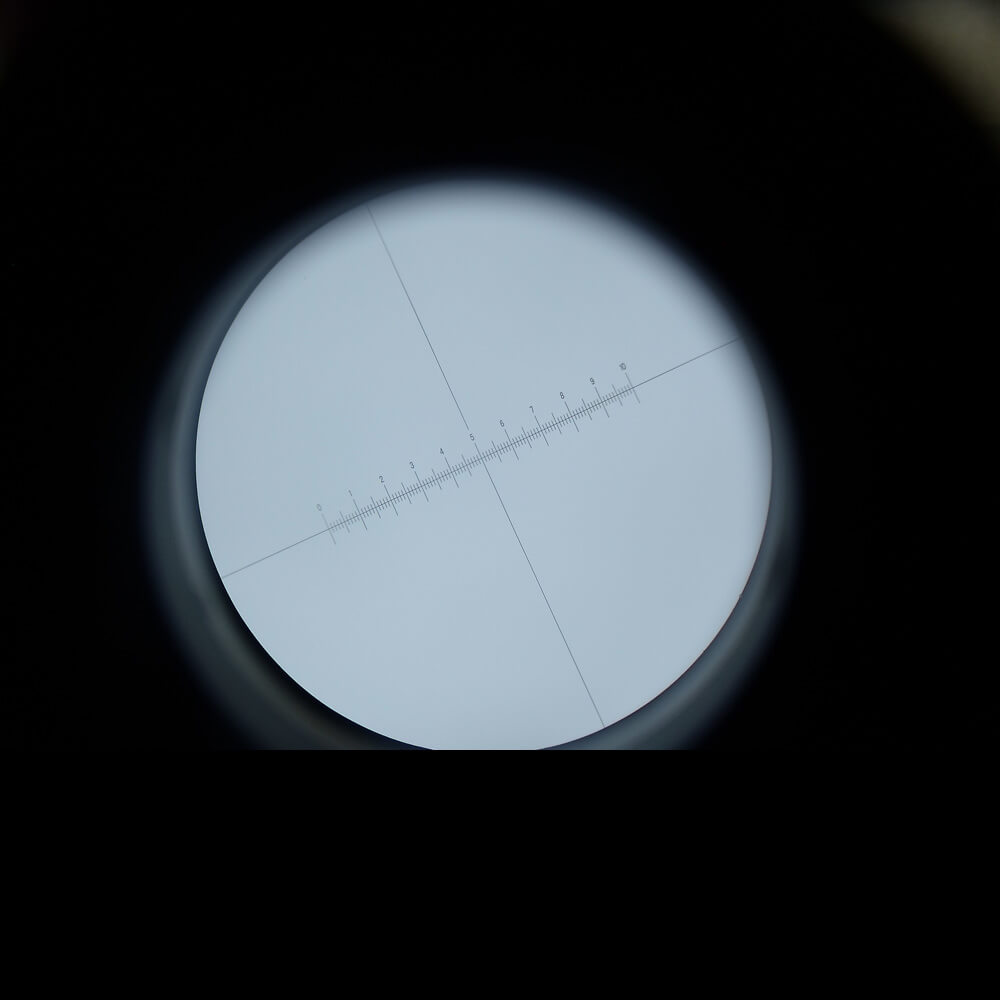

Eyepiece Reticle: 0.1mm
Fine Division: 0.01mm
Working Distance: 6.93mm
Focus Range: 30mm
Diameter of Bearing Plane: φ63mm
Height of Microscope: 210mm
Mass of Microscope: 650g
Illumination: Pen light,No.7 battery
Stable performance, best price, good quality , good after-sales service
