Electric Spot Cleaning Gun

$25.00$30.00

  • Textile Splot Cleaning Gun is an affordable and durable spot cleaning gun.
  • With its adjustable high pressure spray and the new integrated air drying system.
  • With its simple design and ease of use, fast,efficient,realiable.
  • the spot cleaning gun makes a great addition to every screen printing shop.

Electric Spot Cleaning Gun

Application:

The spotting guns are not only used for spot cleaning in the garment industry, but it is also very popularly used in laundries for cleaning stained garments, it is also used in printing industry for cleaning of ink rollers, it is also used in the Wig Industry to clean hair bases, in the electronic industry for cleaning excess flux on PCB’s, for home gardening to spray on plants, for off-line machine cleaning where otherwise your hand cannot reach to clean, etc.

Features:

  • Textile Splot Cleaning Gun is an affordable and durable spot cleaning gun.
  • With its adjustable high pressure spray and the new integrated air drying system.
  • With its simple design and ease of use, fast,efficient,realiable.
  • the spot cleaning gun makes a great addition to every screen printing shop.

Parameter:

  • USE: Join liquid High-pressure outbursts liquid desmearing
  • Nozzle Type:flat nozzle or adjustable nozzle
  • Water Tank Capacity:1.2 L
  • Working Pressure:0.8 Mpa
  • Output Voltage:110V / 220V
  • Power:65w
  • Spraying Flow:1-2ML/S
  • electric current:04-0.6A
  • Weight:1.5KG

Instruction:

1)Remove the container, fill with fluid (about 2/3 full) and replace. Depress switch for 15-20 seconds to prime pump. Spray fluid onto scrap fabric to remove oil film from internal pump parts. Spray gun is now ready for use.

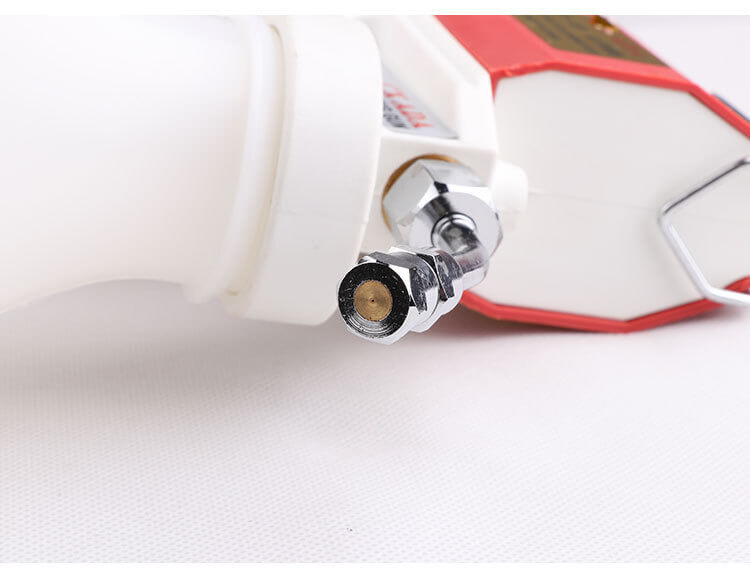

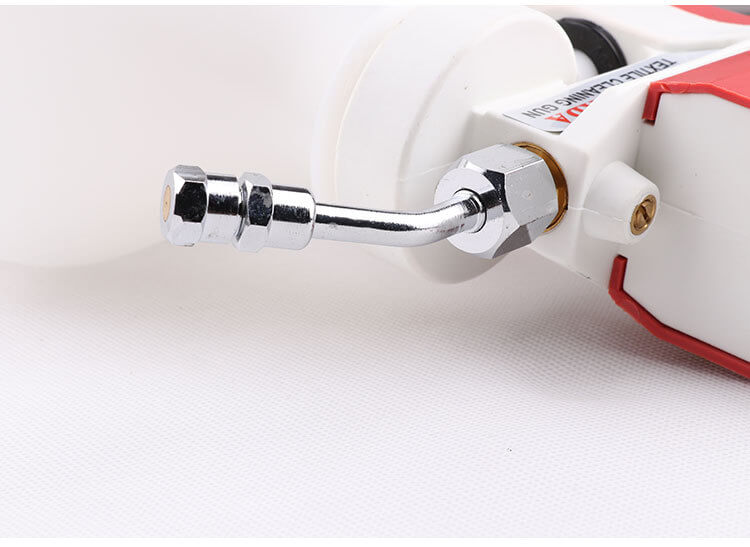

2) Adjustable Nozzle controls the pressure of the cleaning fluid. This is adjusted by simply rotating the nozzle collar on the front of the gun.

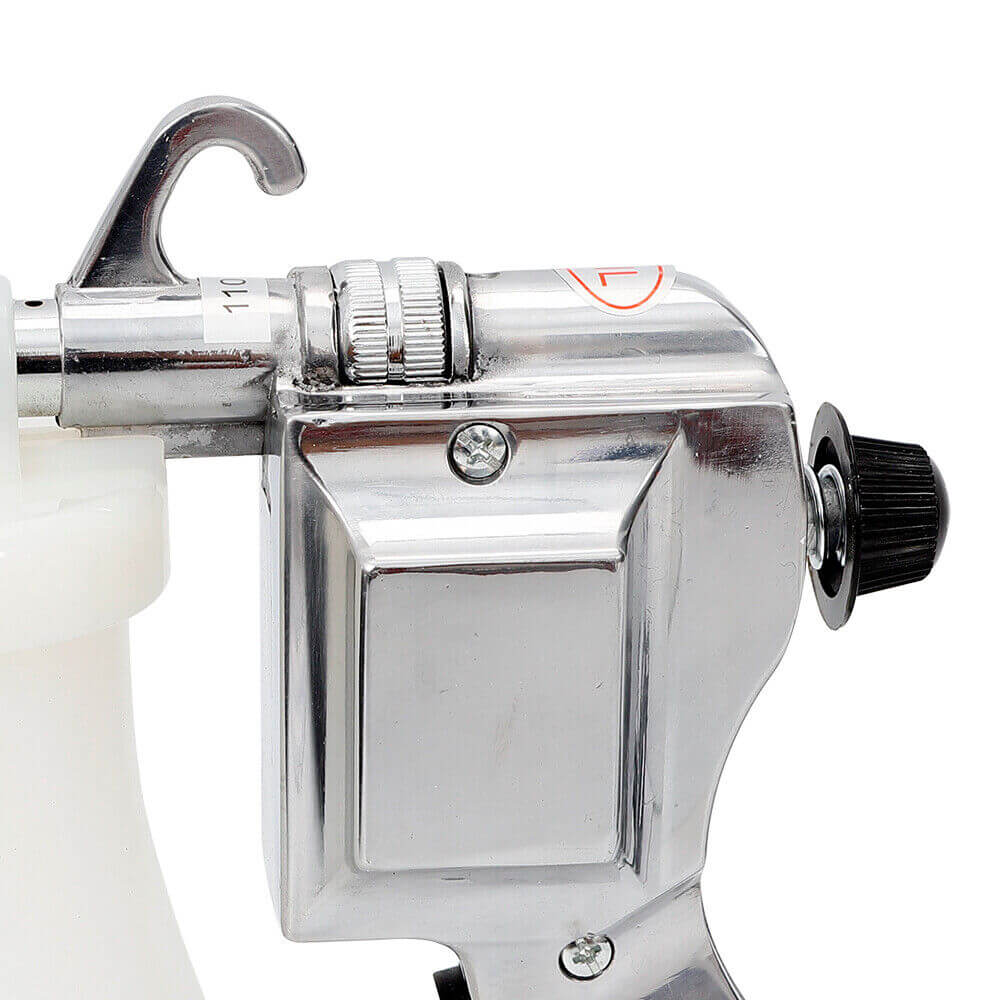

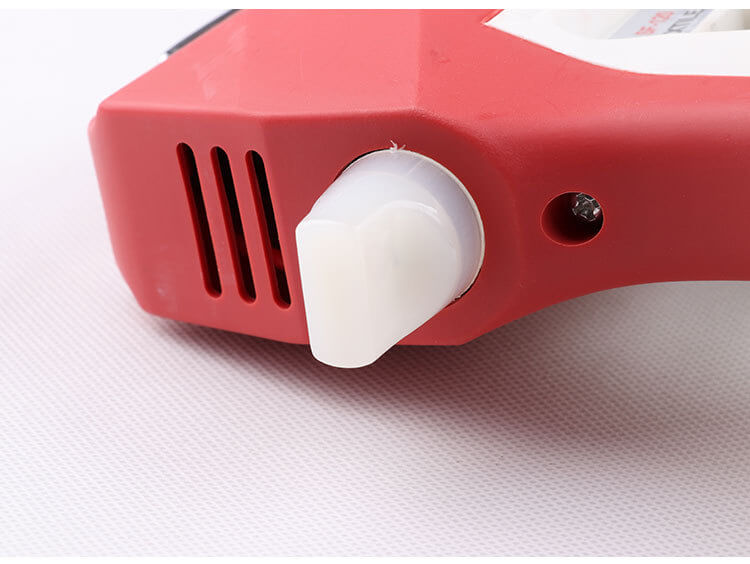

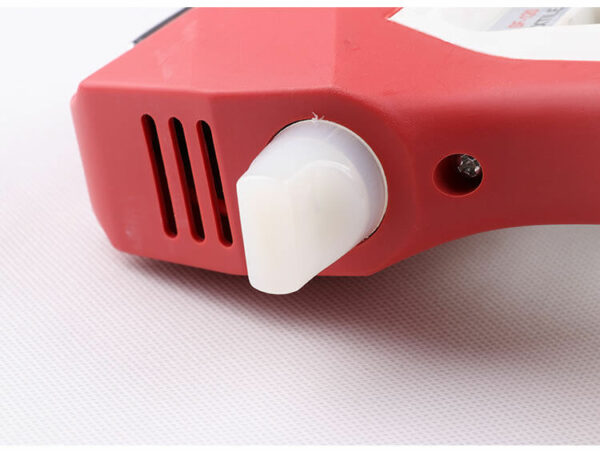

3) Volume Control Knob at the rear of gun controls the amount of fluid being dispensed. For cleaning, turn button as far left as possible: then back to right 1/2 to one revolution. Once adjustments are made to suit your needs, it is generally not necessary to change them.

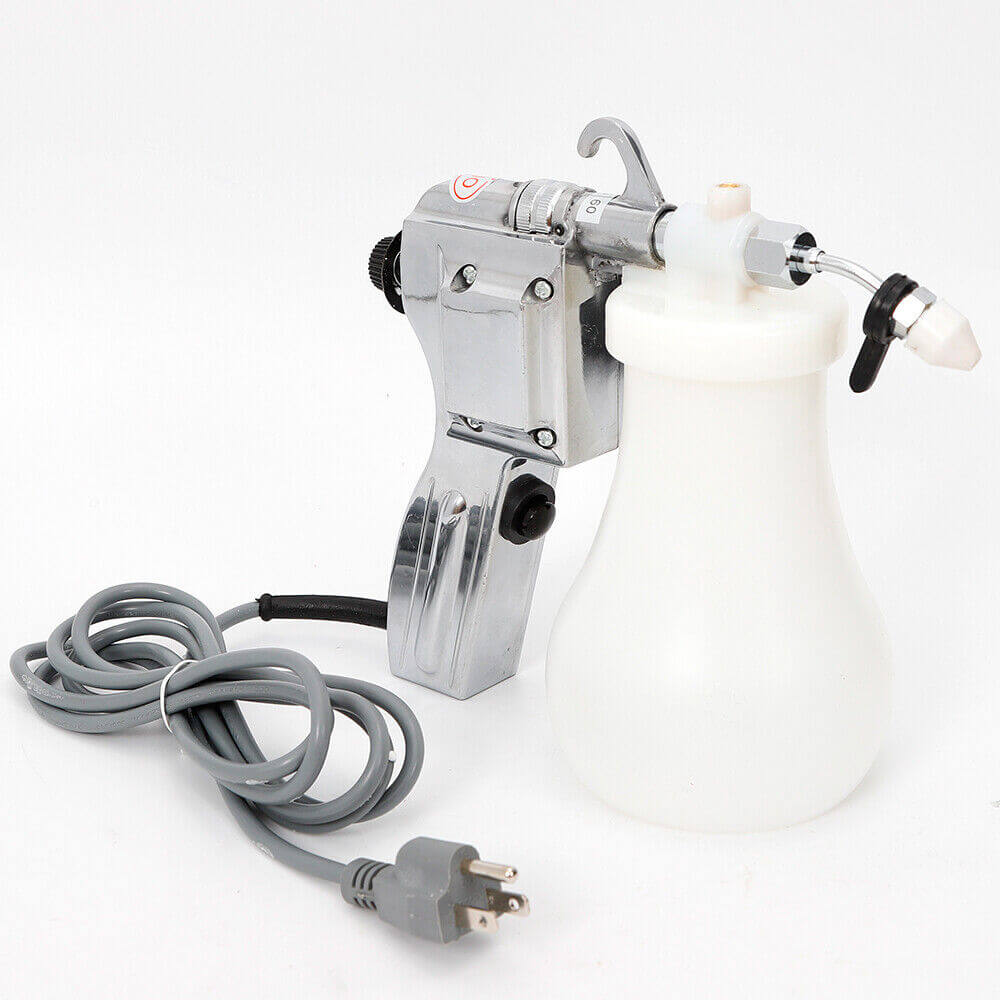

spot cleaning gun SPT18-16

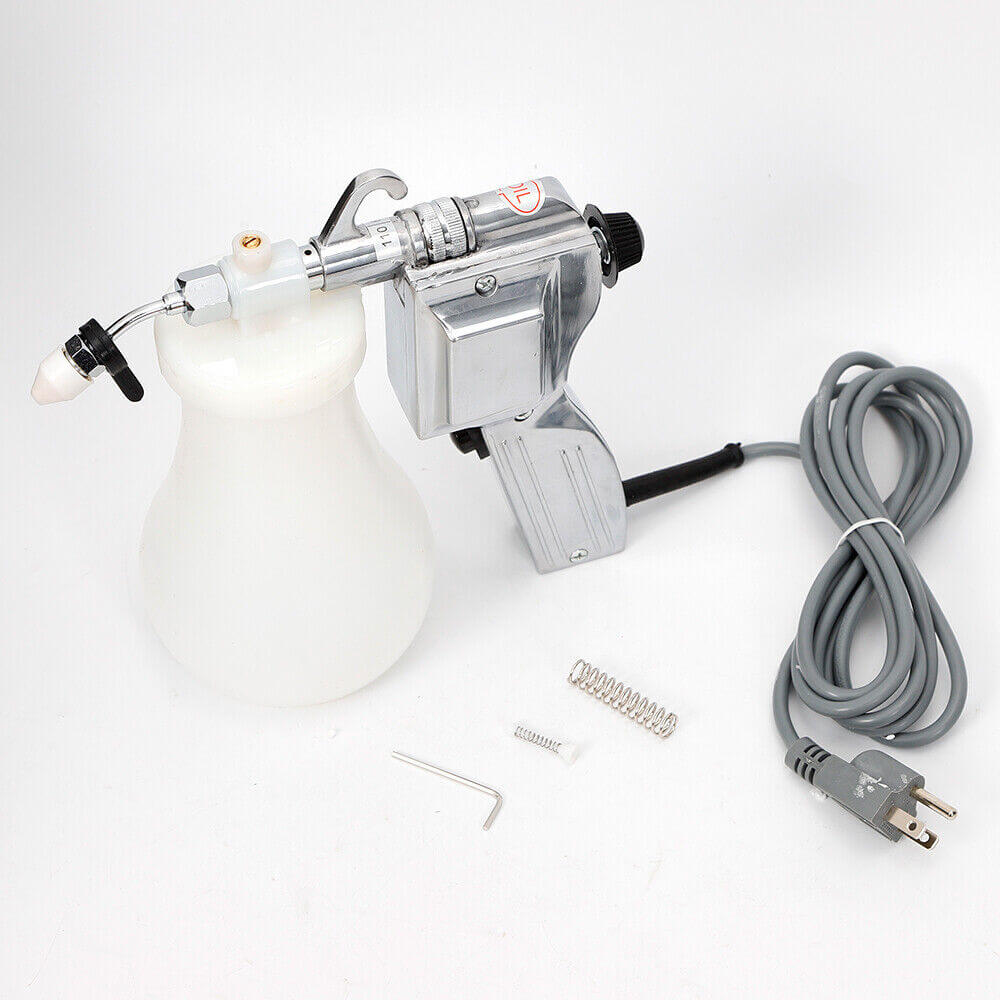

spot cleaning gun SPT18-14
spot cleaning gun SPT18-13
spot cleaning gun SPT18-09

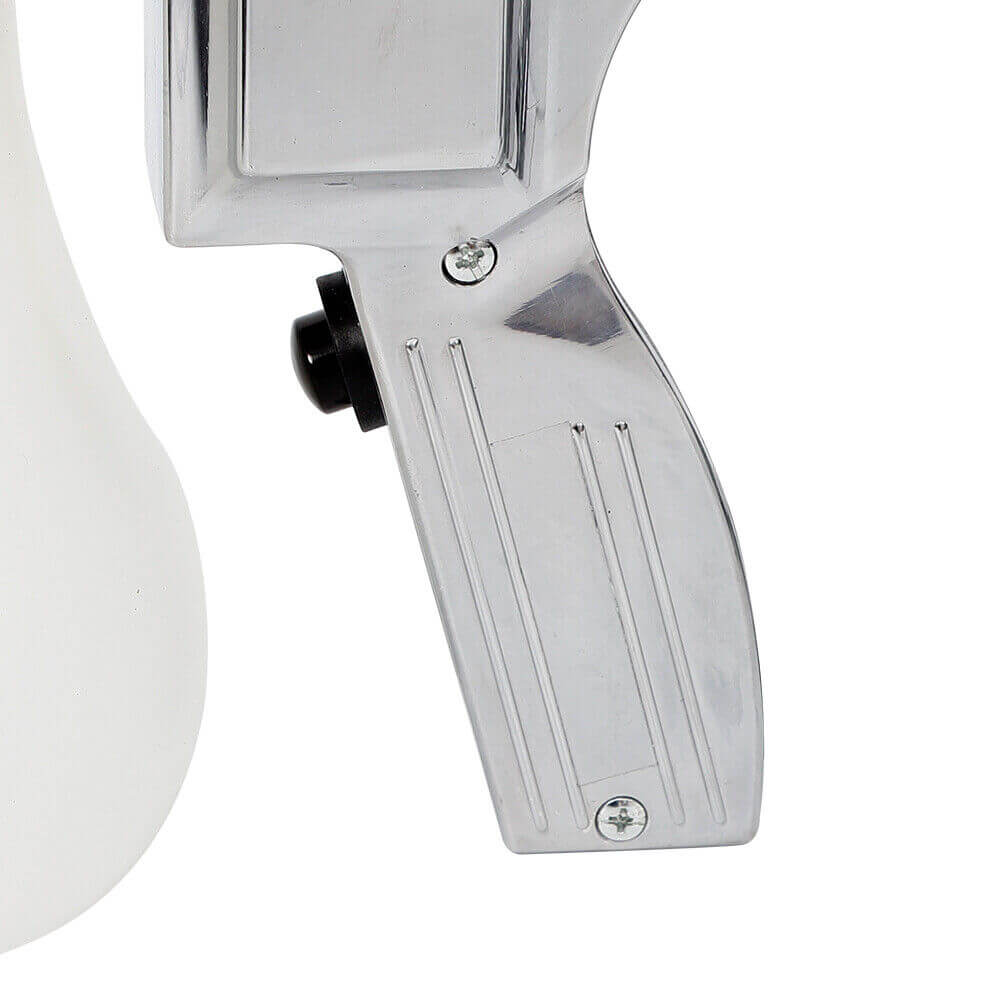

spot cleaning gun SPT18-10

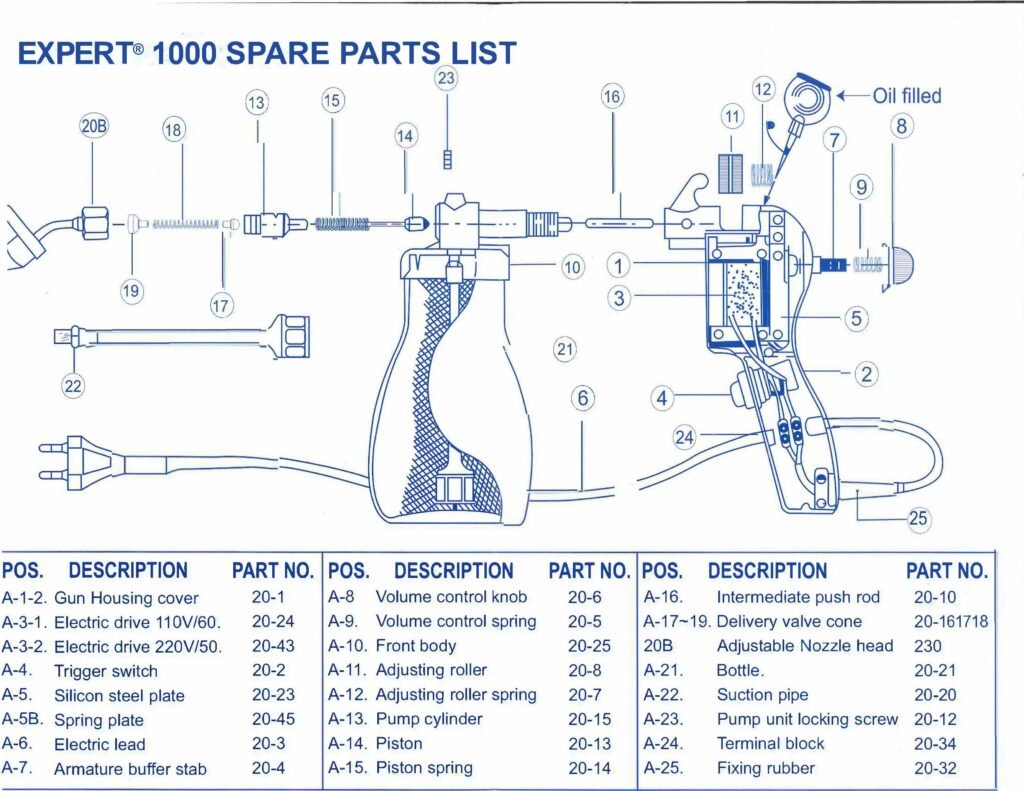

spot cleaning gun SPT18-17

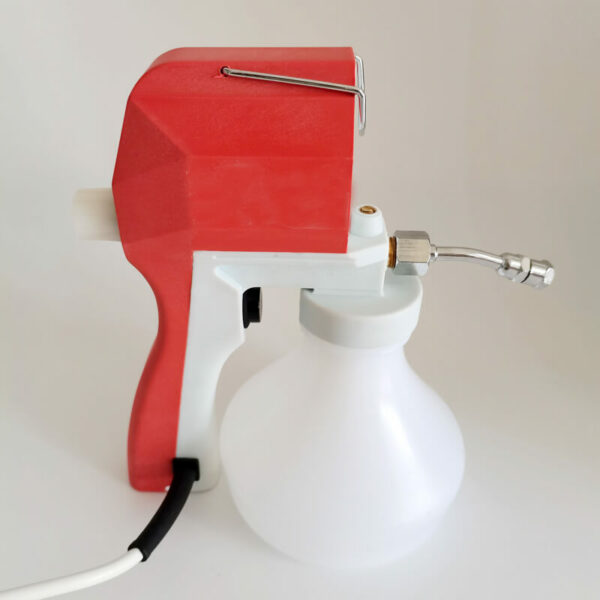

spot cleaning gun SPT18-02
spot cleaning gun SPT18-17
spot cleaning gun SPT18-07
spot cleaning gun SPT18-08
spot cleaning gun SPT18-06
spot cleaning gun SPT18-19

metal spot cleaning gun, plastic spot cleaning gun
